Microsoft Power Automate Process Mining
by Microsoft · Process Mining
Process and task mining in Microsoft Power Automate that maps real processes from event-log data.
Updated August 2026 · By the ERP Research Editorial Team · Independent and vendor-neutral.
- Works with
Microsoft Dynamics 365 Finance & OperationsMicrosoft Dataverse
SAPSalesforce- Deployment
- Cloud
- Pricing
- Per-user subscription plus tenant-wide add-on
- Founded
- 1975
- Headquarters
- Redmond, Washington, United States
Overview
Power Automate Process Mining (formerly Process Advisor) is Microsoft's process and task mining capability built into Power Automate within Microsoft Power Platform. It extracts event-log and activity-log data from an organization's systems of record -- including Dynamics 365 apps, Dataverse, and other databases -- and turns it into visual process maps, KPIs, and variant analysis showing how a process actually runs, as opposed to how it is assumed to run.
The capability splits into process mining, aimed at organization-wide processes such as order-to-cash or accounts receivable using system event logs, and task mining, which records desktop actions to analyze how individual employees perform specific steps. Process maps support three techniques -- discovery (building a model from event data), conformance (checking that model against an intended process), and enhancement (using conformance findings to improve the process) -- alongside prebuilt KPIs, rework/loop detection, and variant comparison. Data connects through Power Query, so any source Power Query can reach -- Dataverse via OData, SQL Server, Text/CSV, and connectors published for systems such as SAP and Salesforce -- can in principle feed a process.
Process mining is licensed per user through Power Automate Premium (from $15/user/month), which pools 50 MB of process-mining capacity per license into a 100 GB tenant-wide cap; a $5,000/tenant/month Process Mining add-on raises that ceiling. Dynamics 365 Supply Chain Management ships a native template that reads the platform's own closed warehouse work records with no custom event-log engineering, while a Power BI Premium license is needed to customize the underlying report.
Screenshots & demo
Screenshots sourced from Microsoft.
Features & capabilities
Process Discovery & Mapping
Builds visual process maps directly from event-log data using discovery, conformance, and enhancement.
- Automated process map generation from event-log data
- Process variant discovery and comparison
- Conformance checking against an intended process
- Frequency, performance, and rework metric layers on the process map
- Self-loop and loop detection

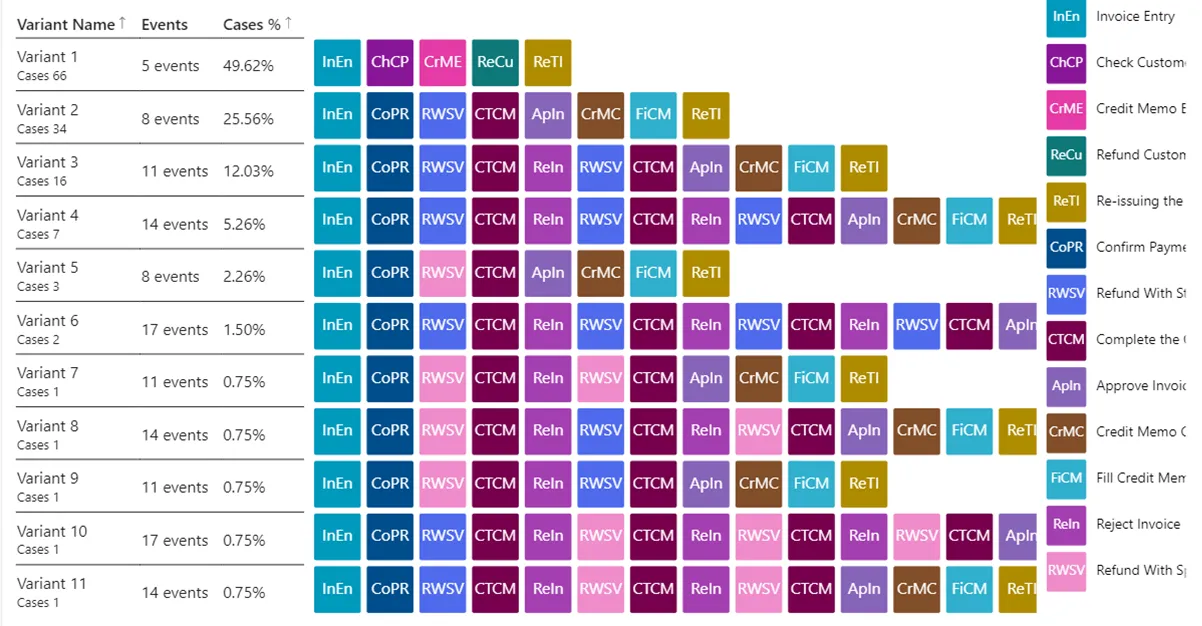

- Variant DNA view showing activity order per variant
Analytics & KPIs

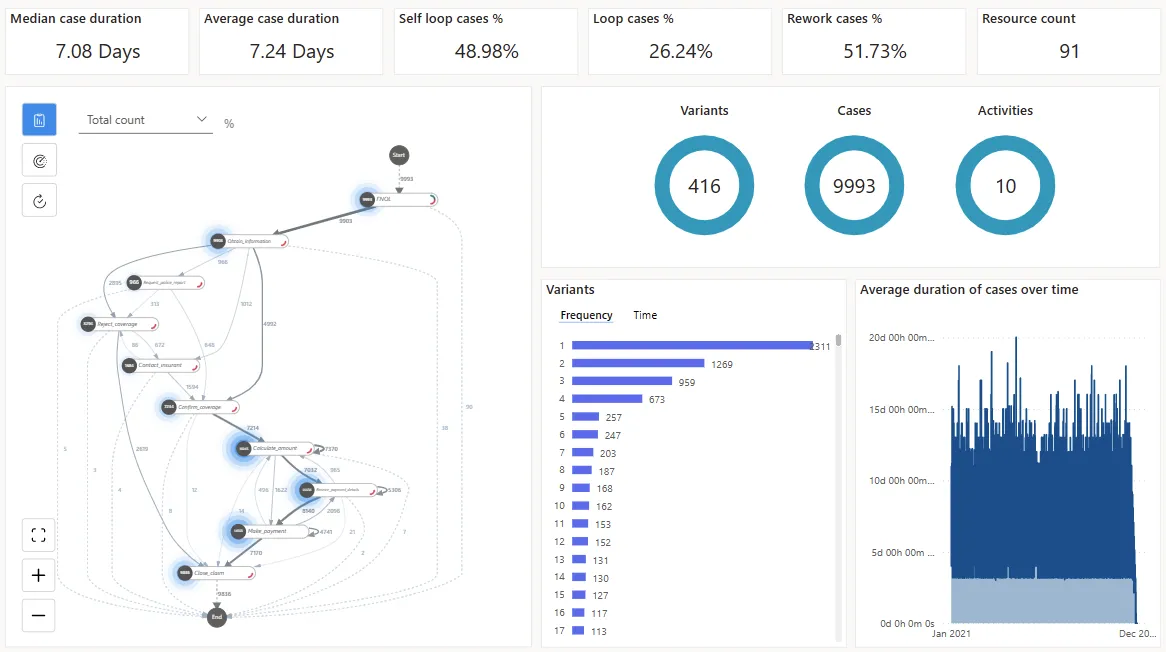

Prebuilt KPIs, filters, and charts for finding bottlenecks and rework.
- Median and average case duration KPIs
- Self-loop, loop, and rework case percentage KPIs
- Resource count KPI (Premium)
- Activity, case, start-date, and custom attribute filters (Premium tiers vary)

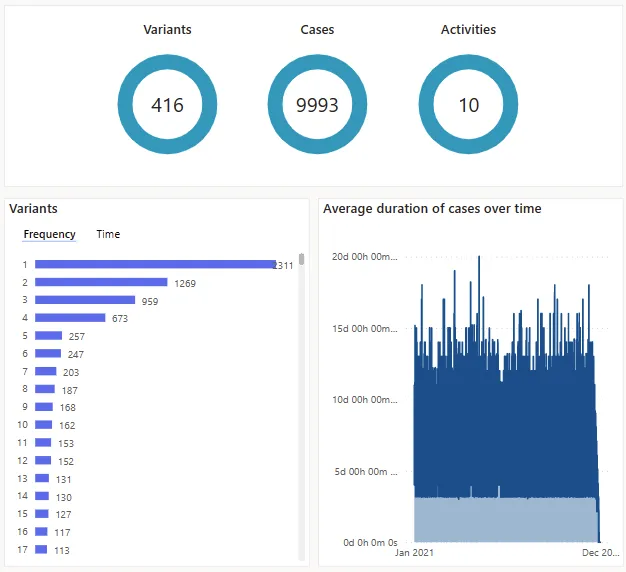

- Variants-by-frequency and variants-by-time charts

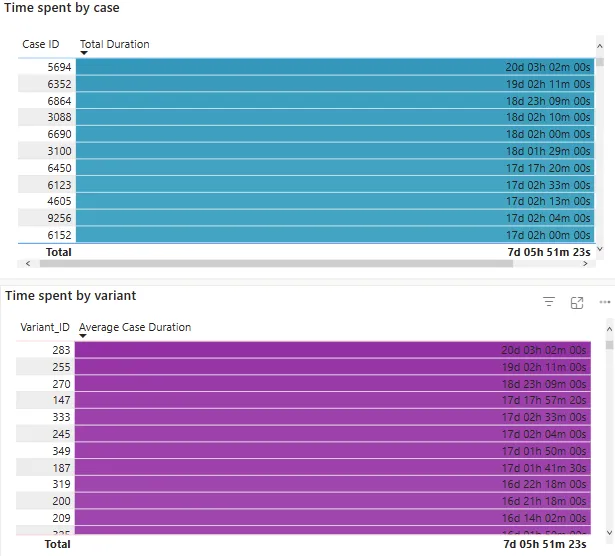

- Time Analysis view for drilling into bottlenecks (Premium)
Data Ingestion & Refresh
Connects to event-log sources via Power Query and keeps process data current.
- Power Query-based connections (Text/CSV, SQL Server, Dataverse via OData)
- Scheduled data refresh, up to once daily
- Incremental data refresh from Azure Data Lake Storage Gen2 or Fabric OneLake
- Custom-trigger data refresh via a Power Automate cloud flow
- Case ID, activity, and timestamp field mapping with a Power Query transform editor
- Support for financial and resource attributes at event or case level
Task Mining
Records desktop actions to analyze task-level execution alongside process-level findings.
- Recorded-action capture on user desktops
- Task-level analytics report
- Multi-user recording contribution to a shared process
- Identification of manual, error-prone, or automatable steps
Native Dynamics 365 Integration & Extensibility
Purpose-built ERP template plus Power BI/Fabric extensibility for custom reporting.
- Dynamics 365 Supply Chain Management "Warehouse material movement analysis" template
- Deployment wizard for filtering by legal entity and date range
- Power BI workspace connection for custom report building
- Fabric workspace connection (preview) for custom report building
- Desktop application for advanced analysis and custom business rules
- Process sharing with automatic permission propagation to invited users
Common use cases
- Mapping order-to-cash or accounts-receivable processes to find bottlenecks and rework loops
- Analyzing warehouse material movement in Dynamics 365 Supply Chain Management to find pick/put inefficiencies
- Checking intended vs. actual process execution (conformance) to detect noncompliant process paths
- Recording desktop task execution to find manual steps eligible for RPA automation via Power Automate flows
- Comparing process variants to standardize approval or procurement workflows across business units
- Building custom Power BI dashboards on top of process mining event data via a Power BI or Fabric workspace
- Monitoring KPIs like case duration and rework rate to track improvement initiatives over time
Strengths & considerations
Strengths
- Native part of Power Automate and Power Platform, so event-log ingestion, RPA remediation via desktop flows, and reporting via Power BI/Fabric sit in one licensing and admin surface rather than a standalone tool
- Ships a purpose-built Dynamics 365 Supply Chain Management integration (Warehouse material movement analysis template) that reads closed warehouse work records via Dataverse with no custom event-log engineering
- Combines process mining (system event logs) and task mining (recorded desktop actions) in one product, so an org can zoom from process-level bottlenecks down to individual desktop task inefficiency
- Data connectivity inherits Power Query's connector library (SQL Server, Dataverse via OData, Text/CSV, and connectors published for systems such as SAP and Salesforce) rather than a fixed, proprietary set of ingestion connectors
ERP integrations
Warehouse material movement analysis template ingests closed warehouse work records as event-log cases; requires Supply Chain Management 10.0.35+ linked to a Dataverse environment.
Dataverse tables, such as the Dynamics 365 Activities/activitypointers table, are connected via the OData connector in Power Query; the native Dataflow/Dataverse connector is not supported for this purpose.
Microsoft's own documentation notes SAP keeps event-log-equivalent historical records and can be connected the same way as other Power Query data sources; no SAP-certified, process-mining-specific connector is published.
Same generic Power Query connectivity path documented for Salesforce event data; no Salesforce-certified, process-mining-specific connector is published.
Pricing
Power Automate Premium pools 50 MB of process-mining capacity per licensed user into a tenant cap of 100 GB. The Process Mining add-on is $5,000/tenant/month (paid yearly) for +100 GB capacity plus extra Dataverse database and file storage. Customizing reports requires a separate Power BI Premium license. A 90-day trial offers 100 MB of capacity per process. Prices are Microsoft's listed marketing prices and vary by region and agreement. Get an independent shortlist with pricing guidance below.
Technical & security
- Hosting
- SaaS (multi-tenant, Microsoft Power Platform/Dataverse environment), with an optional desktop application for advanced analysis
About the vendor
- Founded
- 1975
- Headquarters
- Redmond, Washington, United States
- Ownership
- Public (NASDAQ: MSFT)
Alternatives to Microsoft Power Automate Process Mining in Process Mining
Microsoft Power Automate Process Mining — frequently asked questions
What is Power Automate Process Mining?
Power Automate Process Mining, previously called Process Advisor, is Microsoft's built-in process and task mining capability within Power Automate. It extracts event-log data from an organization's systems of record and produces visual process maps, KPIs, and variant analysis so teams can see how processes actually run rather than how they are documented to run.
How is Power Automate Process Mining licensed?
It is licensed per user through the Power Automate Premium plan, from $15/user/month, which pools 50 MB of process-mining capacity per license into a shared tenant cap of 100 GB. A separate Process Mining add-on, priced at $5,000 per tenant per month, adds another 100 GB of capacity plus extra Dataverse storage. A 90-day free trial with 100 MB of capacity per process is also available.
Does it integrate with ERP systems?
Dynamics 365 Supply Chain Management ships a native Warehouse material movement analysis template that connects directly to closed warehouse work records via a linked Dataverse environment, requiring Supply Chain Management version 10.0.35 or later. Beyond that native template, data is ingested through Power Query, which supports connectors including SQL Server, Text/CSV, and Dataverse via OData, and Microsoft's documentation notes that applications such as SAP and Salesforce expose similar event-log data through their own connectors.
What is the difference between process mining and task mining in Power Automate?
Process mining analyzes event-log data from enterprise systems to map organization-wide processes such as order-to-cash, while task mining records desktop user actions to analyze how individual employees perform specific tasks. The two are complementary: process mining typically identifies which processes have issues, and task mining zooms into the desktop-level detail behind them.
Can process mining reports be customized?
Yes, but customizing the report requires connecting the process to your own Power BI workspace, or a Fabric workspace in preview, and a Power BI Premium license. Without that connection, users see the default report with a smaller set of KPIs and filters than the Premium view.
